Rotax 493 MPEM CONNECTION DIAGRAM

Electrical System/Electronics Tech
Post Reply
User avatar
reddevilsix
Site Admin
Posts: 234
Joined: Wed Apr 01, 2020 3:29 am
User Name and Location information: Richard Schmidt
Plymouth, MN

Rotax 493 MPEM CONNECTION DIAGRAM

Post by reddevilsix »

Thanks to Jeff Blumenthal

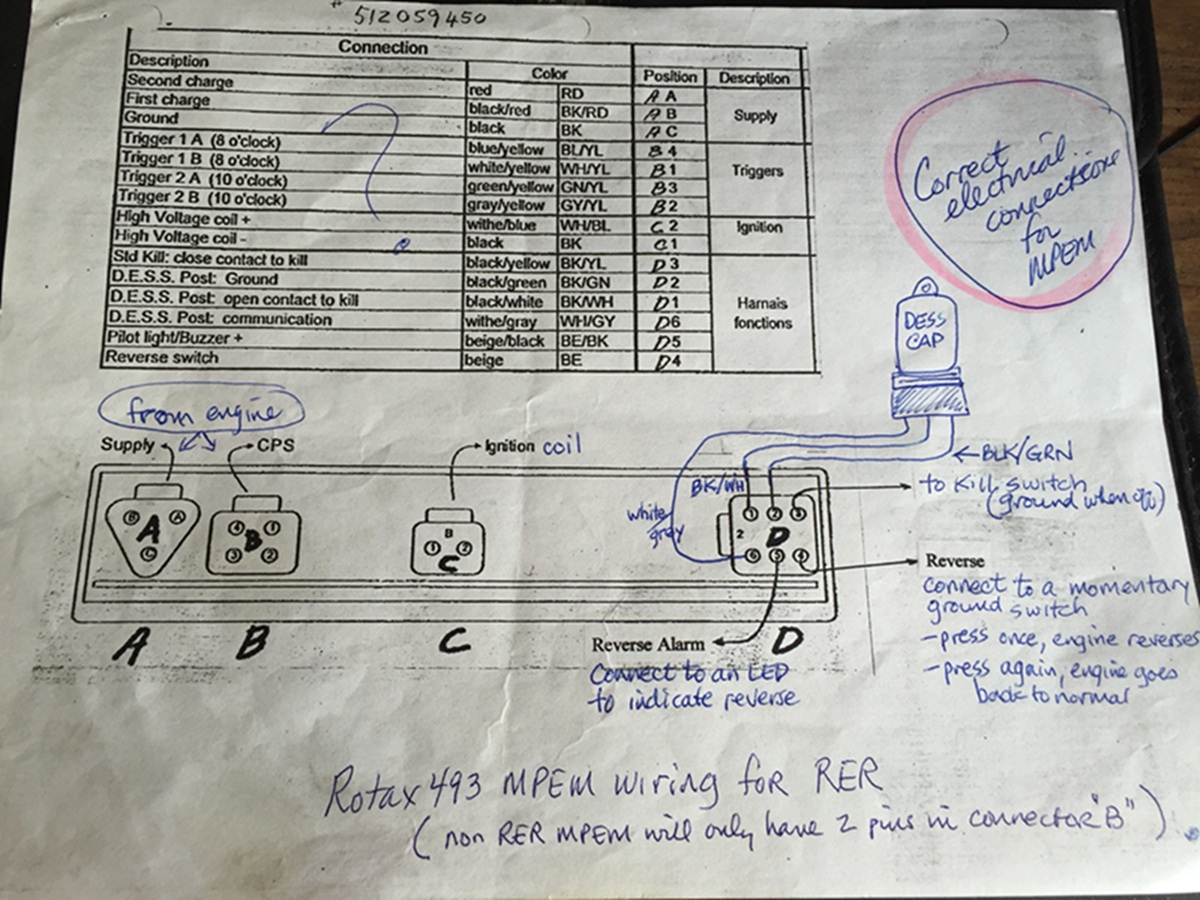

Rotax 493 MPEM wiring resized-5.jpg
Rotax 493 MPEM wiring resized-5.jpg (348.01 KiB) Viewed 584 times
