Jackshaft sprockets that fit a 1" keyed shaft

[reddevilsix]

I have four jackshaft sprockets that fit a 1" keyed shaft. On my KBS, it was easy to change the final drive ratio as it employed a belt tensioner. I used the different size jackshaft sprocket to get the final drive ratio I wanted for a given track. For a short track like Blackhawk and MAM, you want to be geared low, but for a open track like Elkhart's Road America, you would want taller drive ratio.

Sprocket part numbers are comprised of pitch, number of grooves and width. For example; part number 8MX-48S-12 denotes 8mm pitch, 48 grooves, “S” for sprocket and 12mm width. -



Steel 8mm pitch, 36mm wide poly chain sprocket for 1 inch keyed shaft with taper lock - 32 teeth. Gates P/N 8MX-32S-36 1210 Taper lock sprockets are lighter than the standard sold steel sprocket. Used, but like new. Motion Industries.com list this part for $151.76. Asking $50.00 plus shipping, or make offer.

Small Sprocket Gates 32 teeth.JPG (160.58 KiB) Viewed 7370 times

SOLD - SOLD

Richard

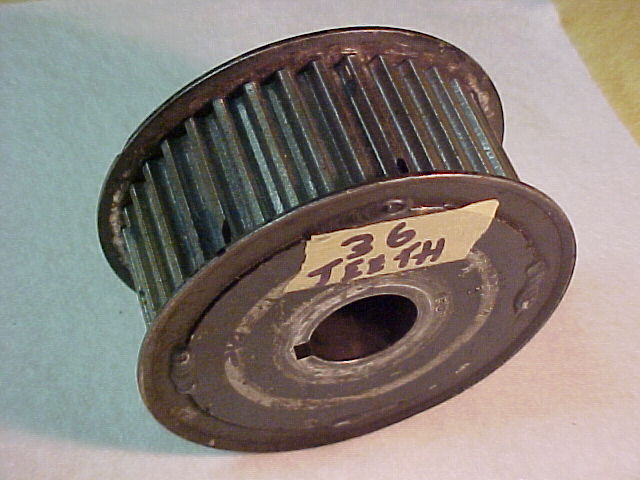

Steel 8mm pitch, 36mm wide poly chain sprocket for 1 inch keyed shaft - 36 teeth. Used but in good condition. I think this is from Pfeifer Industries. Big discount at $20.00 plus shipping.

Small Sprocket 36 teeth 2.JPG (62.22 KiB) Viewed 7370 times

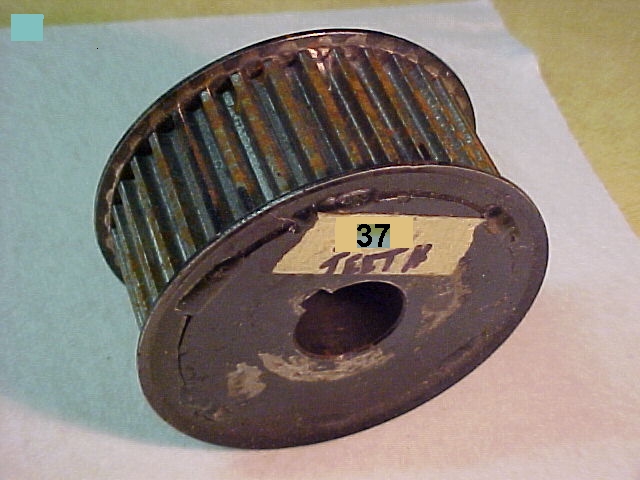

Steel 8mm pitch, 36mm wide poly chain sprocket for 1 inch keyed shaft - 37 teeth. Used but in good condition. I think this is from Pfeifer Industries. Big discount at $20.00 plus shipping.

Small Sprocket 37 teeth .JPG (164.02 KiB) Viewed 7370 times

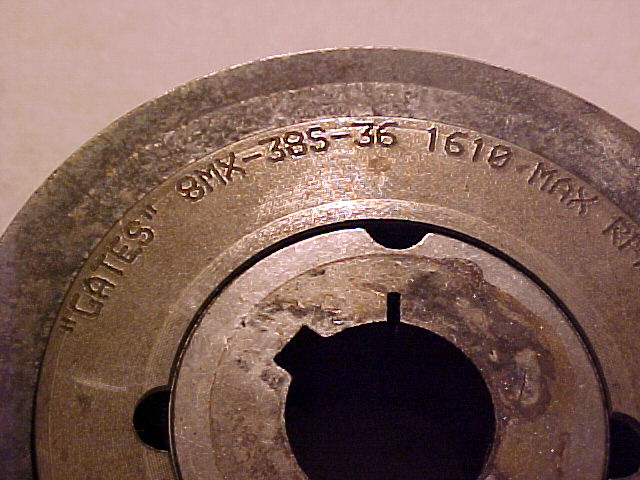

Steel 8mm pitch, 36mm wide poly chain sprocket for 1 inch keyed shaft with taper lock - 38 teeth. Gates P/N 8MX-38S-36 1610 Taper lock sprockets are lighter than the standard sold steel sprocket. Used but like new. Motion Industries.com list this part for $155.55. Asking $50.00 plus shipping, or make offer.

Small Sprocket Gates 38 teeth.JPG (68.02 KiB) Viewed 7370 times

[reddevilsix]

These sprockets are still for sale. Make me an offer I can't refuse.

Richard

[Stuster]

I'd like the 32 if u still have

[reddevilsix]

Yes the 32 tooth is still for sale. I have not researched the current prices on these, so I'll just let it go for the advertised price of $50.00 plus shipping.

Richard

[Stuster]

Sold let me no how 2 get

[reddevilsix]

OK sold Check your e-mail for instructions.

Richard
